This chapter describes the MLEK reference applications for real-time audio processing:

• Keyword Spotting (KWS): Demonstrates wake word detection and voice command recognition
• Audio User Algorithm Template: Provides a foundation for custom audio ML processing applications

Required API Interfaces

For hardware deployment, the Board-Layer should provide the following API interfaces:

Required API Interface	Description
CMSIS_VIO	Virtual I/O interface for LEDs, buttons, and basic I/O
CMSIS_VSTREAM_AUDIO_IN	Virtual Audio Input / Audio Interface
STDOUT, STDERR	Standard output for printf debugging and logging

These interfaces ideally are supplied by the vendor of your evaluation board. For custom hardware, details on the implementation are found in the CMSIS-Driver Manual

Keyword Spotting Application

Keyword spotting (KWS) reference application detects predefined words or phrases from a continuous audio stream. An embedded device can listen to a list of "wake words" and use it to execute commands. This implementation uses TensorFlow Lite Micro and CMSIS-NN for optimized inference on Cortex-M processors or Ethos-U processors.

How KWS works:

• Incoming audio is captured from a microphone or played back from a test sample.
• The audio stream is preprocessed and converted into Mel-frequency cepstral coefficients (MFCC) features.
• A MicroNet keyword spotting model classifies the MFCC features to determine which keyword, if any, was spoken.
• Detection results are reported via printf messages.

Audio Stream Preprocessing

The MicroNet keyword spotting model expects audio data to be preprocessed before performing an inference. This section is an overview of the feature extraction process used. First, the audio data is normalized to the range (-1, 1).

Mel-Frequency Cepstral Coefficients (MFCCs) are a common feature that is extracted from audio data and can be used as input for machine learning tasks such as keyword spotting and speech recognition. For implementation details, please refer Mfcc.cc and Mfcc.hpp. These files are part of the software component ML Eval Kit:Common:API.

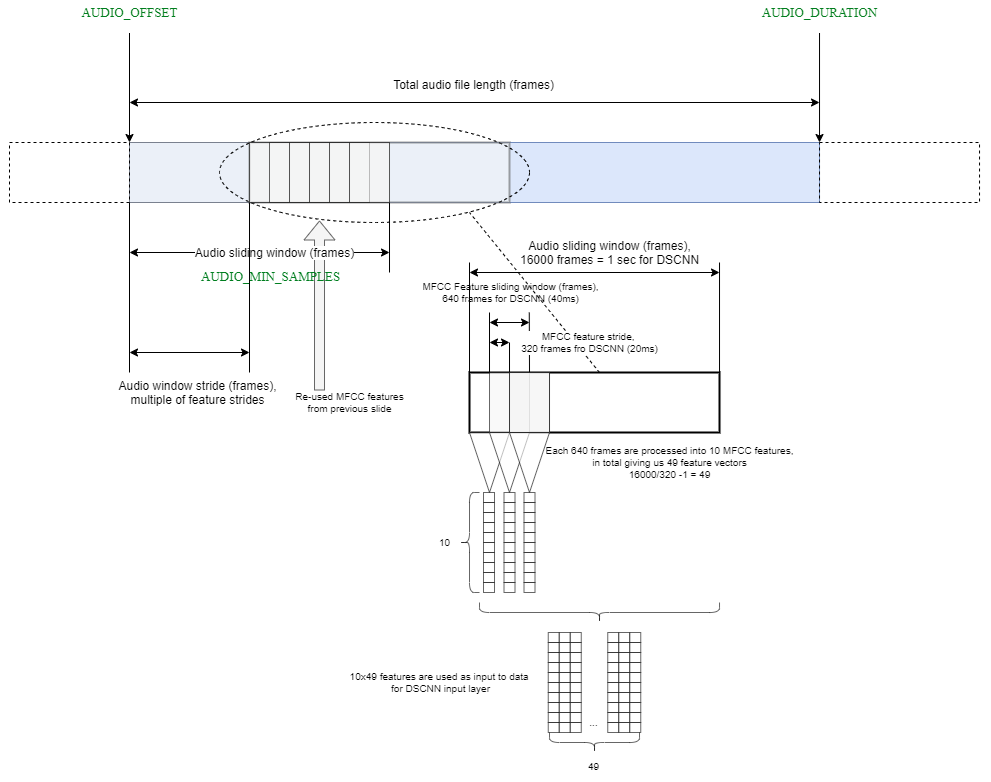

Next, a window of 640 audio samples (40ms) is taken from the audio input. From these 640 samples, we calculate 10 MFCC features. The whole window is shifted to the right by 320 audio samples (20ms) and 10 new MFCC features are calculated. This process of shifting and calculating is repeated. For 1 second audio input, 49 windows that each have 10 MFCC features are calculated. These extracted features are quantized and an inference is performed.

MicroMet ML Model

The KWS application uses the MicroNet Medium INT8 model that is trained for twelve keywords (see file src/Labels.cpp).

ToDo: - how to get scripts? - how to convert models?

A sample audio file containing the word "down" is provided for testing.

The picture below shows serial output from a hardware target, while the application detects the keyword "yes" on a microphone stream.

Build Types

The KWS example defines four build types that control debug information and the audio source:

Build Type	Description
Debug-Live_Stream	Uses live microphone input with debug information enabled.
Release-Live_Stream	Live microphone input with optimizations for performance.
Debug-Data_Array	Processes a built-in audio array for regression testing with debug information.
Release-Data_Array	Processes the audio array with release optimizations.

Use the Debug build types during development and the Release build types for performance measurements. Switch between Live_Stream and Data_Array depending on whether you want real-time audio or a fixed sample. On Arm Virtual Hardware Targets, the Live_Stream is utilizing the VSI interface

Audio User Algorithm Template

Todo.

Working with MLEK Templates

See Target Configuration chapters on how to deploy the reference applications to a specific hardware or simulation target.
